Office Partitions

The Window Man is able to make commercial aluminium or timber office partitions.

These photos are for a job at Oakden using ALSPEC’s commercial framing with 6.38 clear laminate glass and pivot double doors at either end.  A T-section wall divides the room into 2 seperate places.

The floor was to be raised higher to meet the base of our frames, and final angles and flashing added by others.



black commercial framing office partition

black commercial framing office partition

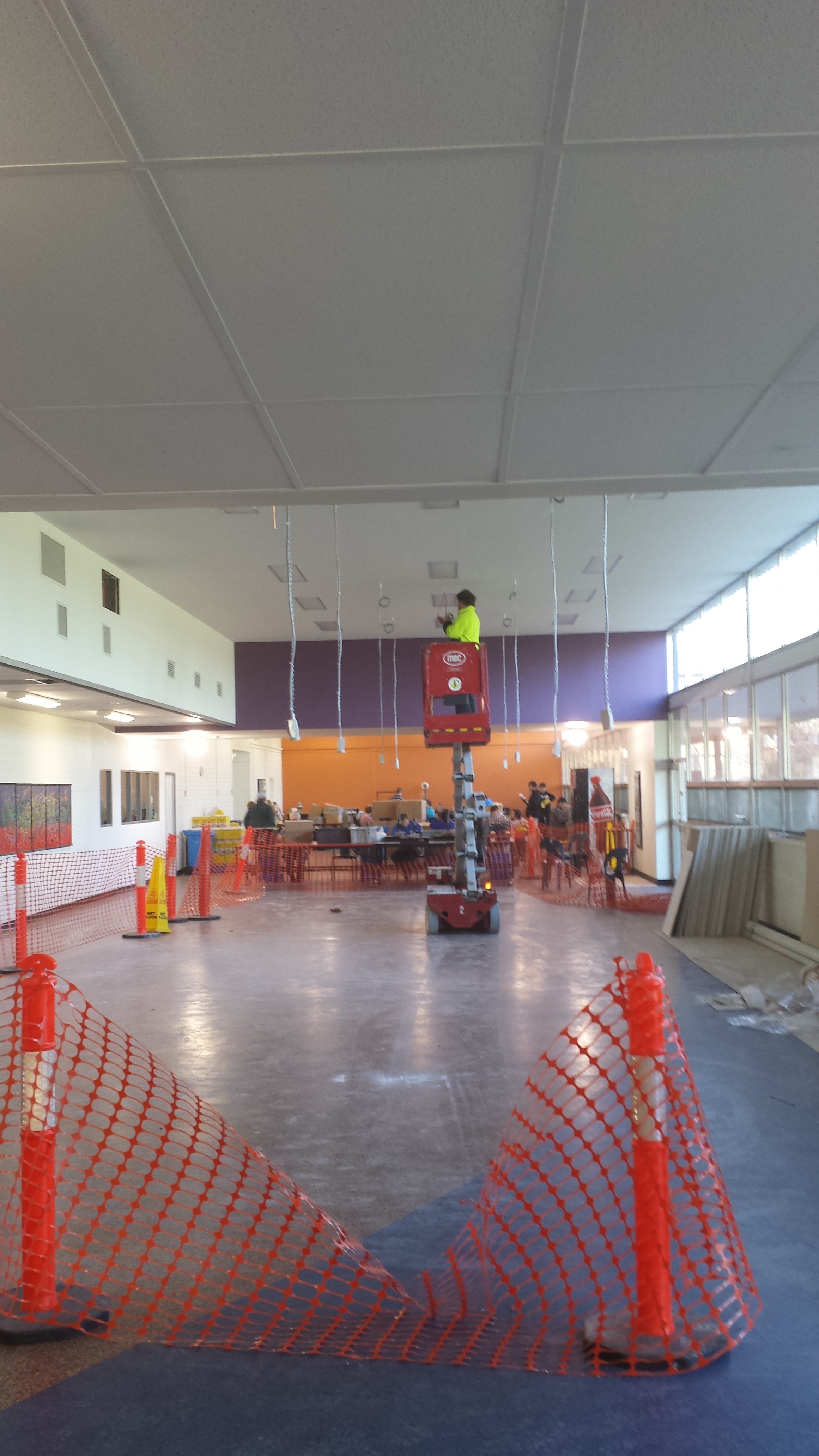

This particular dividing wall is nearly 4m high and required a scissor lift. Using a sub-head to align along the top.

This particular dividing wall is nearly 4m high and required a scissor lift. Using a sub-head to align along the top.

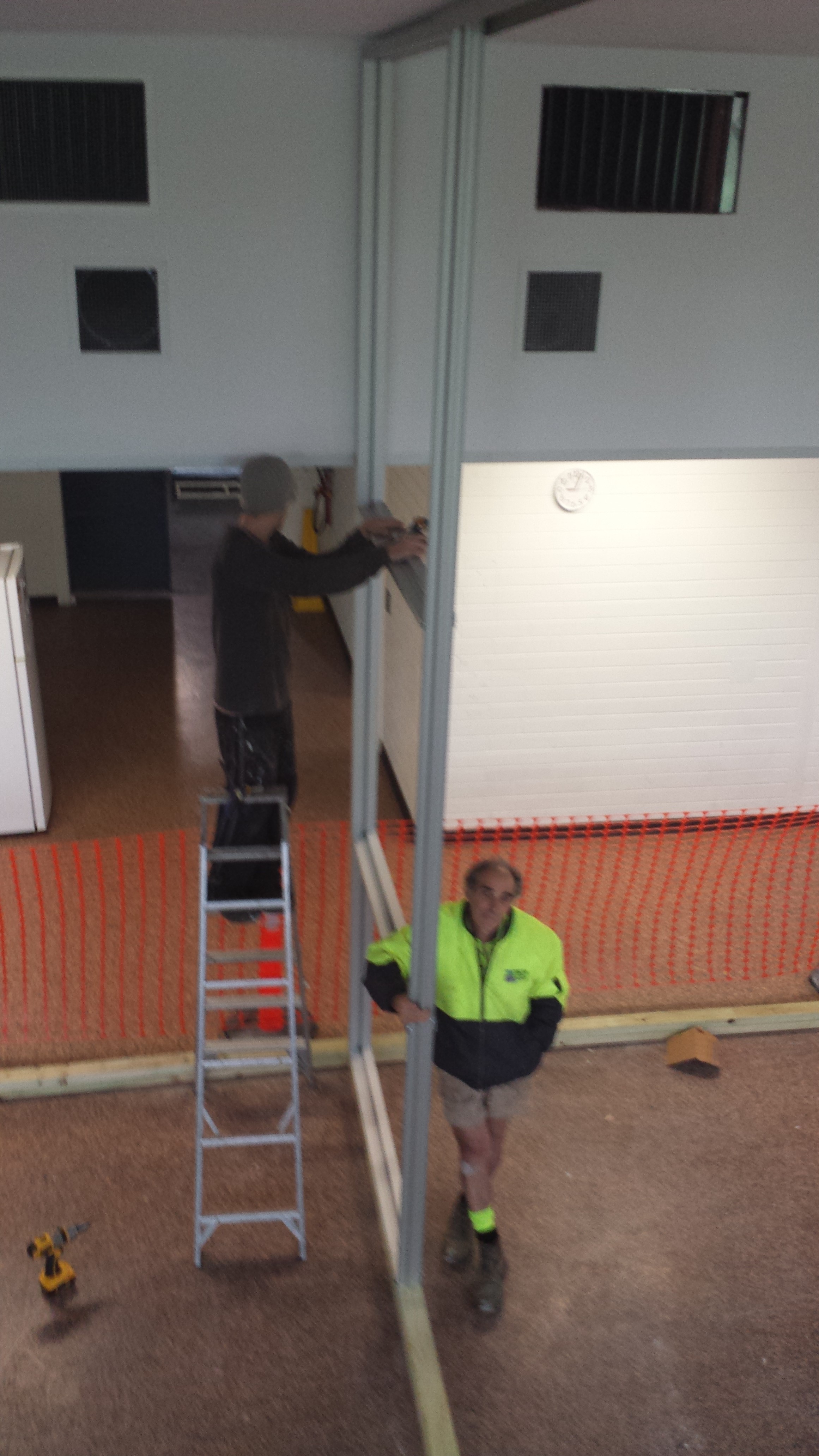

Placing the first section into the T-section of the wall. Each componant clips into the next. Then screwed together.

Placing the first section into the T-section of the wall. Each componant clips into the next. Then screwed together.

Commercial framing in clear anodise.

Commercial framing in clear anodise.

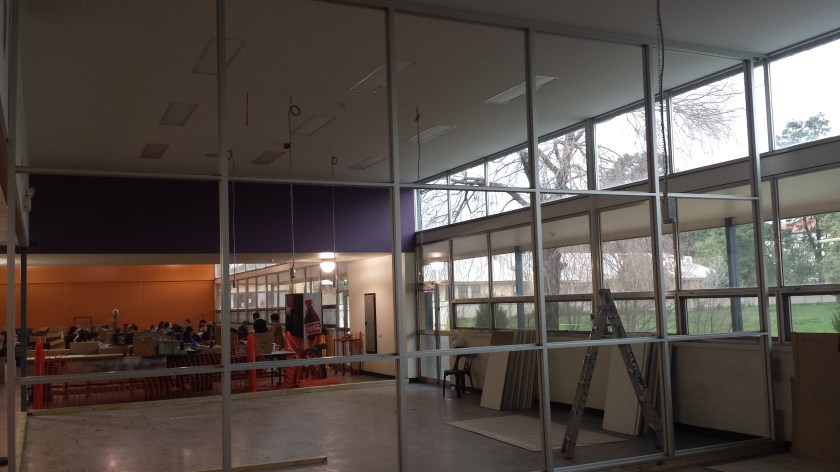

20140725_102908

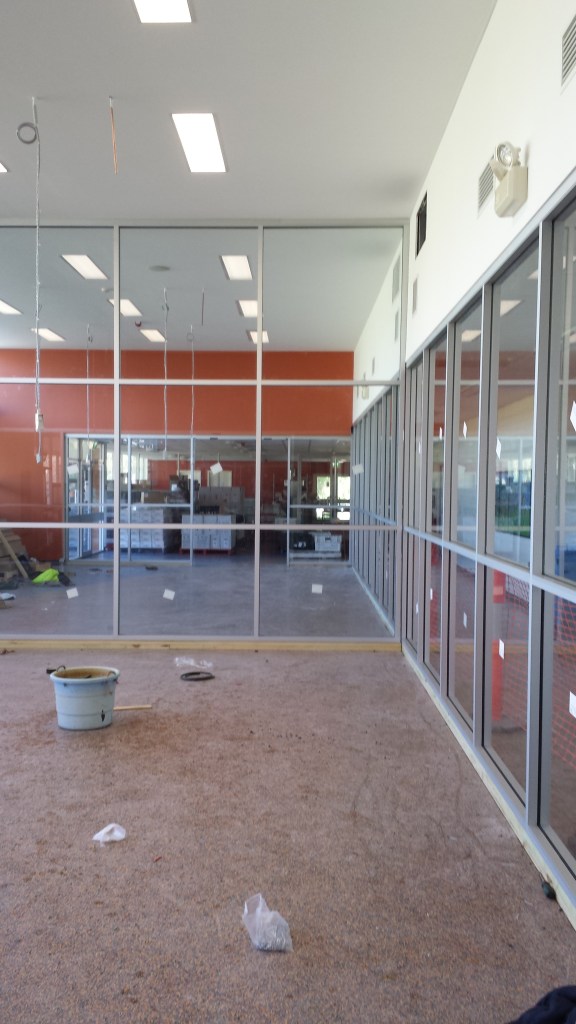

Some 6.38 clear laminate glass has been glazed

Some 6.38 clear laminate glass has been glazed

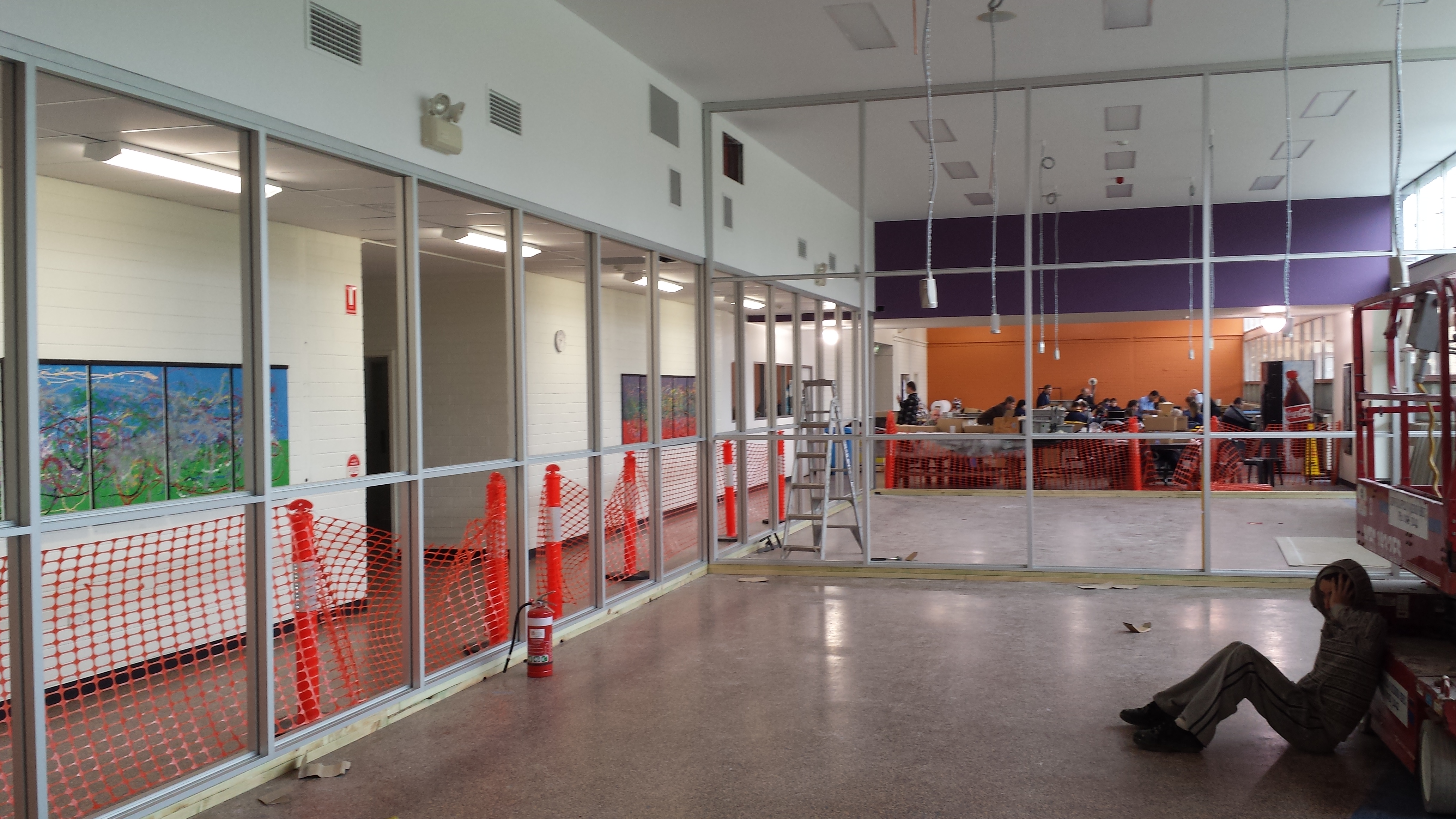

Looking through on wall, across to the partition and to the final wall.

Looking through on wall, across to the partition and to the final wall.

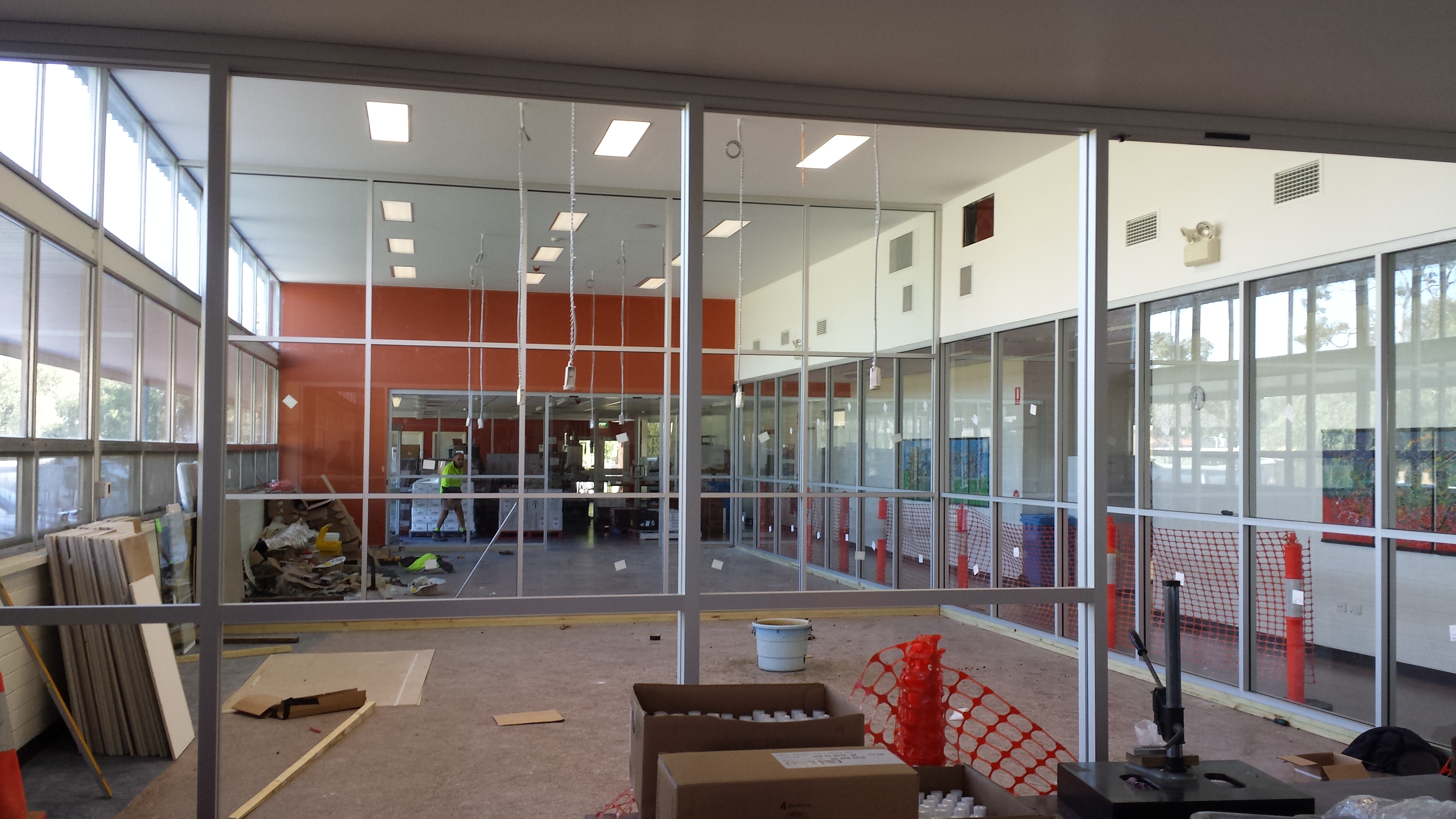

HIgher up view of the office partition

HIgher up view of the office partition


Clear anodise office partitions

Clear anodise office partitions

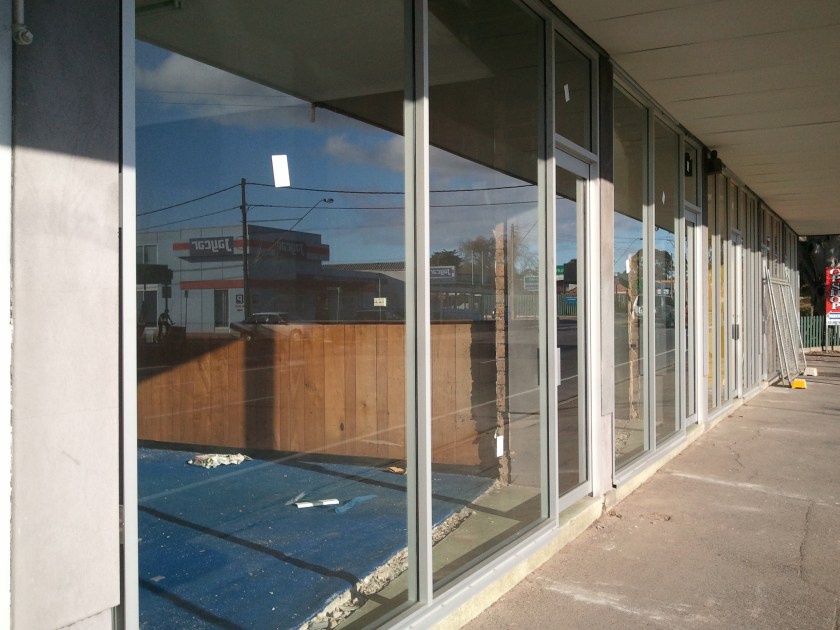

Clear anodise commercial shop fronts

Clear anodise commercial shop fronts
