This morning we removed an old rotten window at a rugby club. The original was a 4 panel awning window (so it could wind out), but the client wanted fixed panels instead.
WE reduced it 2 panel fixed lite. None of the sashes could be opened at this point – all had swollen from moisture and had sealed themselves shut.
Original Window. THe Right most panel has the glass ready to fall out as the bottom of the sash is comopletly rotten and sagging.
THe sashes have been removed and the mullions cut to then allow the rest of the perimeter frame to come out.
New frame in. Very tight working conditions on the inside.
Finito. Notice the bottom sill tiles have come away (they were resting on original frame). The Builder has a tiler organised to re-cement back in the correct angle. Our work is complete.
Last week we pulled out the old rotten windows in a lovely sun room. the floor was hand made parquetry, truly time-consuming to make.
We replaced the frames with new cedar frames. This time with no colonial bars, and increased the glass from 3mm float, to 6.38 clear comfort plus Low-E glass.

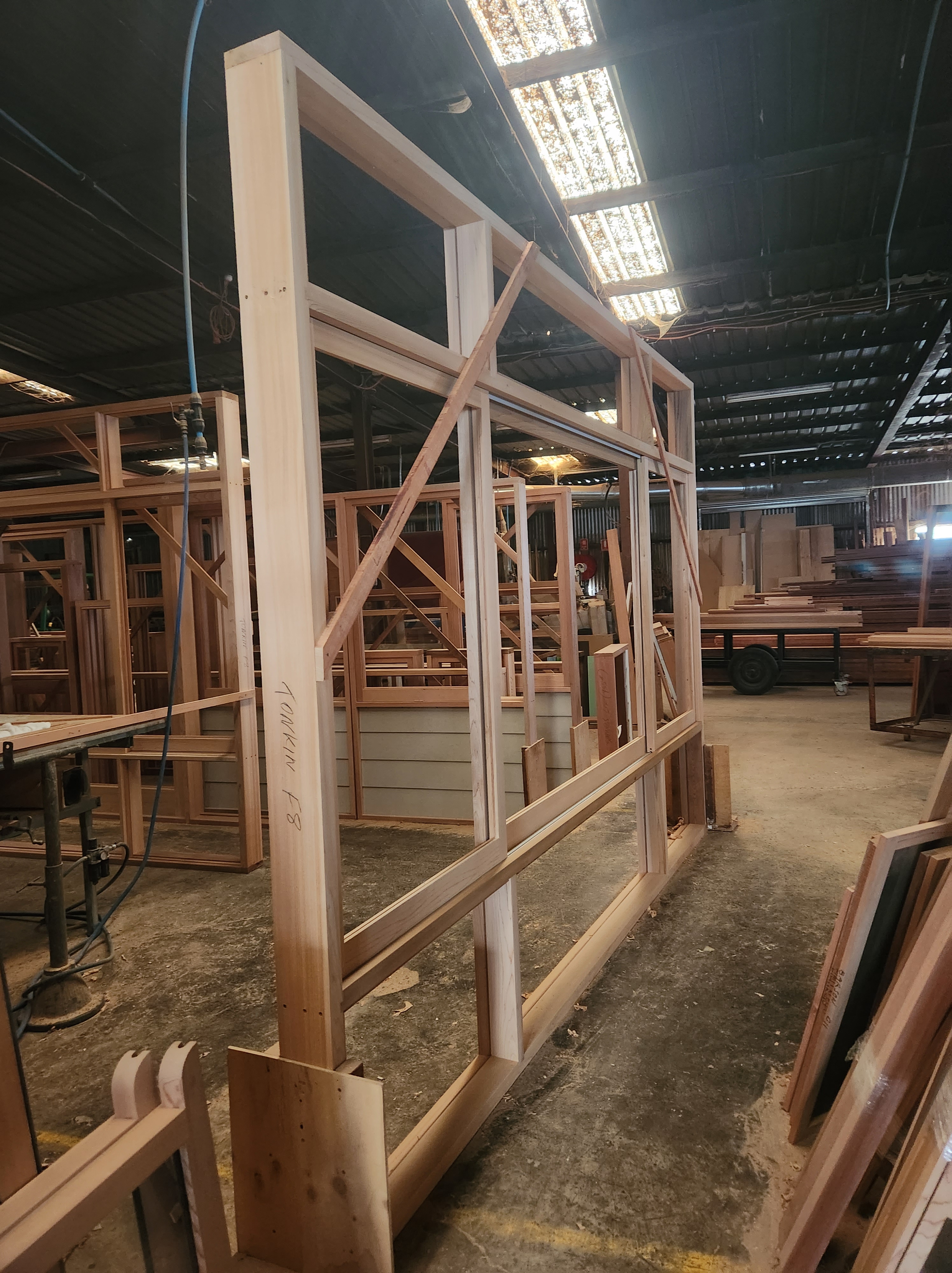

Every year it, work becomes crazy busy as orders increase, and time runs out. here is a photo I’ve taken this morning giving an idea how little room we have to move at the moment in the factory.
Today we went on site to glaze some windows we had manufactured earlier.
all western red cedar, and in the pics below you can see corner window with silicon join glass.
My last little post had a picture of arches being made.
here is the photo of one of the windows being installed.
it went almost perfect today, i had the first window out by 8am, and the new ones fit perfectly with no need to adjust or alter.
I’ve been pretty slack posting new bits n pieces up.
too much to do!
new window made basedon old broken one. quite ugly but who are we to decide. it also has pink glass for it.
double glazed cedar lift up windows.
cedar sliding door
sash rails being prepared for assembly. all those round bits on the end become the sash horns. photo’d in black and white for a change
A nice job today, removing old glass, colonial bars, transoms, mullions, sashes and so on. replaced with 10.38 laminate glass for a stronger and safer result, and with a much fuller view to the river (west lakes).
My entire last week was spent on a first floor of a hall installing 16 bronze anodise sliding windows. It was a challenge (4 of us there all week) but in terms of photos, pretty boring. But this was being made at the factory by my timber lads and when i returned to work I had to photo this and share it.
Solid Oak. roughly 2900 high x 3000 wide. We are making a pair of doors (again solid oak) which when we install the frame will be hung on pivots.
The fixed panels on the sides will be adorned with crosses and other ikons for the church.
2900 x 3000 or so. 2 doors on pivot hinges will be made and hung when we install it . for a church in adelaide. the panels on the sides will have crosses and other items
Yesterday i took this photo of a jobsite we are working on. The Client is not yet ready for the glass panels to be installed. Clear anodise commercial framing. Awnings on top of the windows.
Clear Anodise commercial frames. Windows will have large fixed panels of glass with awning sashes on top. Door frame with hinged full glass door. Work in progress shot.
Clear anodise office partitions
Spent a few days installing office partitions, doors, glass and locks on various floors of a franklin st building in adelaide’s CBD. we re-used some glass panels, and some doors, with the rest being manufactured in our factory and then installed on site.
a WIP photo.
Very hard work with most items requiring transport up staircases.or lifts.
